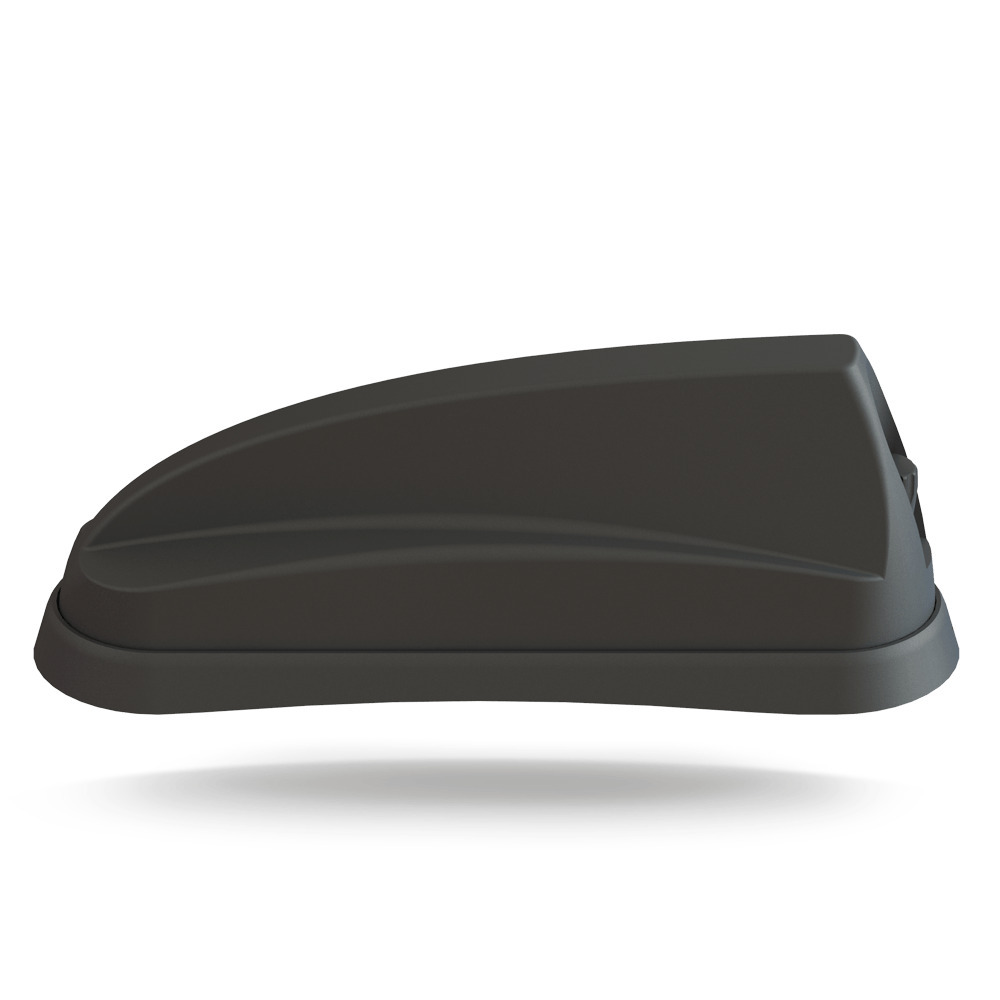

PANORAMA 2×2 MiMo Cellular Sharkee Antenna Black – 617-960 / 1710-6000MHz, 4G/5G, GPS/GNSS with advanced filtering for LTE Band 13/14

4G/5G MiMo Antenna Discrete OEM Style Sharkfin. The SHKG ‘Sharkee®’ range has become a byword for industry leading technology in discrete OEM sharkfin housing. The SHKG-6- 60 brings 5G capability to the product family. The antenna can be fitted on a metallic or non-metallic panel and still offer similar performance. The SHKG shark fin style design provides multiple antenna functions while remaining discreet and is suitable for public safety (overt/covert), industrial and transport applications where a cost effective, efficient, and robust antenna is essential. Requiring only a single hole mounting, the SHKG reduces vehicle damage, installation time & cost, and visual impact whilst protecting a vehicle’s resale value.

• Pattern Omnidirectional
• Max Input Power(W) 10
• Frequency Range | Gain 617 – 960MHz | 5dBi; 1710 – 3800MHz | 8dBi; 4900 – 6000MHz | 9dBi
• Cellular LTE Elements 2 x 2 MIMO
• WIFI Elements No; 2 x 2 MIMO; 3 x 3 MIMO; 4 x 4 MIMO
• UHF Elements No
• GPS Frequency Range 1562-1612MHz
• LNA GAIN (dB) 26
• Number of GPS Elements 1 Module
• Cable Length – LTE min: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft)
• Cable length – GPS min: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft)
• Cable Length – WIFI min: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft)
• Cable Type (LTE) FR RG174
• Cable Type (GPS) FR RG174
• Cable Type (WIFI) FR RG174
• Quantity of Cell Cable 2
• Quantity of GPS/GNSS Extension 1
• Quantity of WIFI Extension max: 4
• Connector (WIFI) Reverse Polarity SMA; SMA (f)
• Connector (GPS) SMA (m); FME (f)
• Connector (LTE) SMA (m)
• Mounting Type Fixed Panel
• Mounting Type Temp Magnetic
• Mounting Methods Magnetic; Panel
• IP Rating IP69K
• Cable Flammability EN45545-2 HL3; UN ECE R118; EN6722
• Technology GPS; 4G/5G; 5G; 2G/3G; 2G/3G/4G; Band 71 600MHz ready; FirstNet; GNSS; WIFI MIMO; WIFI
