PANORAMA BRACKET MOUNT ANTENNA 617-960/1710-6000MHz 5m SMA(m) Wall, Mast or Panel Mount, 4G/5G LTE Covering 600-6000MHz

SKU: Leader-NHP-B4BE-6-60-5SP

PANORAMA BRACKET MOUNT ANTENNA 617-960/1710-6000MHz 5m SMA(m) Wall, Mast or Panel Mount, 4G/5G LTE Covering 600-6000MHz

SKU: Leader-NHP-B4BE-6-60-5SP

$70.81
  • check icon In Stock

PANORAMA BRACKET MOUNT ANTENNA 617-960/1710-6000MHz 5m SMA(m) Wall, Mast or Panel Mount, 4G/5G LTE Covering 600-6000MHz

Quantity
-
+

Calculate shipping



Standard Shipping - $7.95
2-6 Business Days With Tracking, Maximum $7.95
Express Shipping - $9.95
Next Business Day Within Australia Post Express Post Network

PANORAMA BRACKET MOUNT ANTENNA 617-960/1710-6000MHz 5m SMA(m) Wall, Mast or Panel Mount, 4G/5G LTE Covering 600-6000MHz

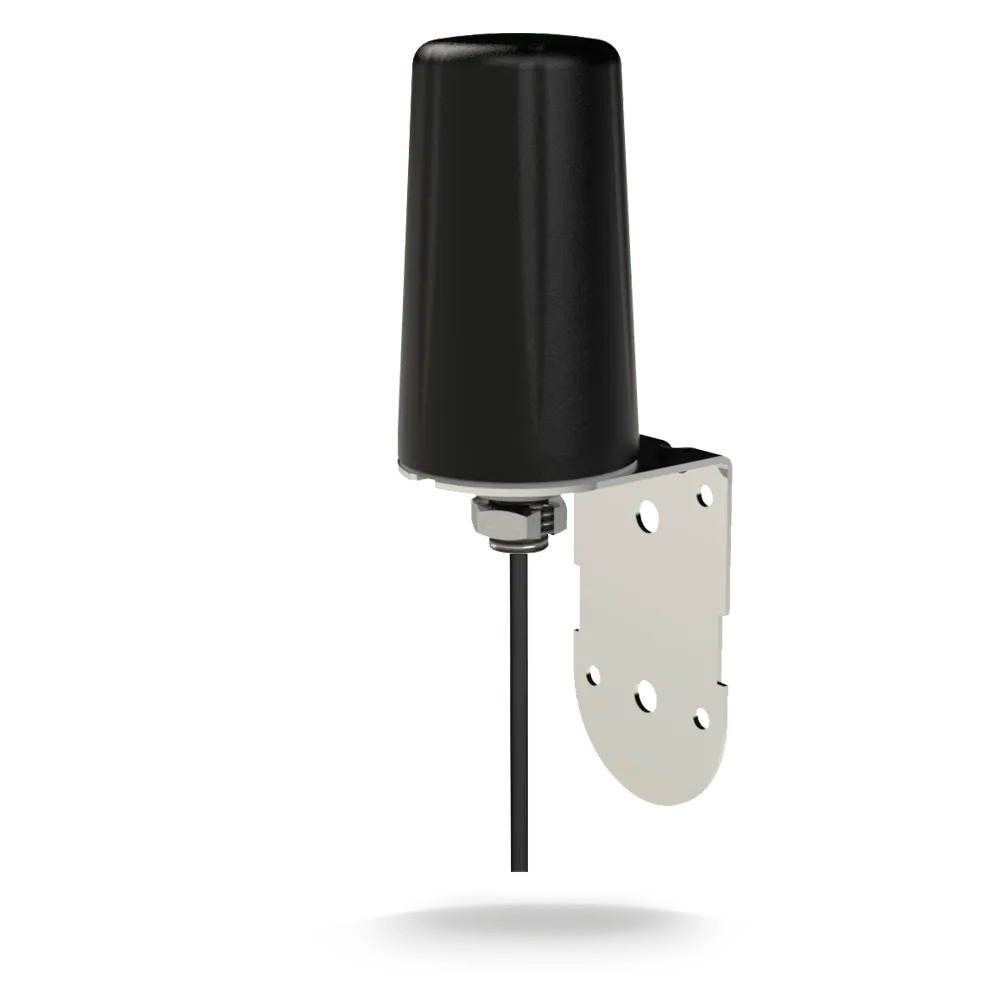

The Panorama B4BE is a robust bracket mount antenna for LTE, M2M, and IoT applications.
The B4BE range has been designed to provide cost-effective coverage booster antennas for 2G/3G/4G and 5G devices. The antennas are designed for wall or mast mounting and are weatherproof which allows the device to reap the benefits of an antenna mounted in an elevated or external location where the signal is strongest. The Omni-directional radiation pattern allows the antenna to be quickly installed while the global Cellular/GSM/LTE coverage provided by the antenna allows it to be utilised for 2G/3G & 4G applications the world over.

  • Integrated Low Loss Cable
  • 5dBi Peak Gain Performance
  • UV Stable & IP Rated

ELECTRICAL DATA

  • Pattern Omnidirectional
  • Max Input Power(W) 30
  • Frequency Range | Gain 617 – 960MHz | 2dBi; 1710 – 2700MHz | 3.5dBi; 3400 – 3800MHz | 5dBi
  • Operating Temperature -40°/ +80°C (-40.0°/ +176.0°F); -40°/ +85°C (-40.0°/ +185.0°F)
  • Cellular LTE Elements SiSo
  • WIFI Elements No
  • UHF Elements No

GPS DATA

  • Number of GPS Elements No
  • Cable Type (LTE) CS29
  • Connector (LTE) SMA (m)
  • IP Rating IP66
  • Material Flammability UL746C F2, UL 94-HB
  • Technology 4G/5G; 5G; 2G/3G; 2G/3G/4G; Band 71 600MHz ready
