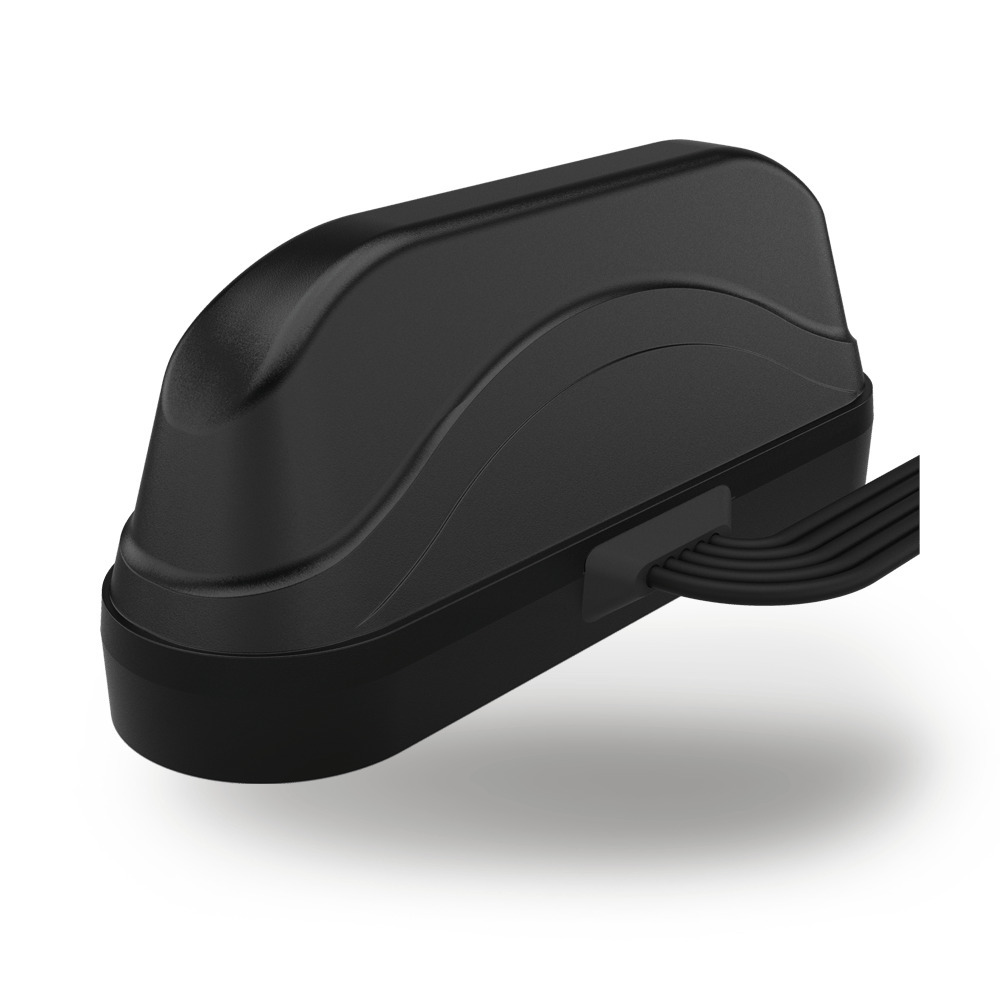

PANORAMA Compact Low Profile Magnetic Antenna, 2×2 MiMo 4G/5G Ready Covering 700-3800MHz WIFI 1m SP, Weatherproof IP66 Dual Band WiFi & Optional GPS/G

This high-performance antenna offers multiple antenna functions for applications where a cost-effective, efficient and robust antenna is essential. It is ideal for vending machines, payment terminals and other M2M applications where installation without drilling a hole is desired. The L[G]AM consists of 2×2 MiMo function for 2G/3G/4G/5G covering 698-3800MHz, 2×2 MiMo function for 2.4/5GHz WiFi and an optional active antenna for GPS/GLONASS/Galileo/BeiDou with 26dB gain LNA for high-quality positioning and filtering. The antenna maintains a high level of performance even when mounted on a non-metallic surface. The antenna is designed to be mounted magnetically.

• Pattern Omnidirectional
• Max Input Power(W) 25
• Frequency Range | Gain 698 – 960MHz | 2dBi; 1710 – 3800MHz | 5dBi
• Cellular LTE Elements 2 x 2 MIMO
• WIFI Elements 2 x 2 MIMO; No
• UHF Elements No
• GPS Frequency Range 1562-1612MHz
• LNA GAIN (dB) 26
• Number of GPS Elements 1 Module; No
• Cable Length – LTE min: 1 (m) | 3.28 (ft); max: 3 (m) | 9.84 (ft)
• Cable length – GPS min: 1 (m) | 3.28 (ft); max: 3 (m) | 9.84 (ft)
• Cable Length – WIFI min: 1 (m) | 3.28 (ft); max: 3 (m) | 9.84 (ft)
• Cable Type (LTE) RG174
• Cable Type (GPS) RG174
• Cable Type (WIFI) RG174
• Connector (WIFI) SMA Rev Pol
• Connector (GPS) SMA (m)
• Connector (LTE) SMA (m)
• Mounting Type Temp Magnetic
• Mounting Methods Magnetic
• IP Rating IP66
• Technology GPS; WIFI MIMO; 4G/5G; WIFI; 5G; 2G/3G; 2G/3G/4G; GNSS; WIFI SISO
