DESCRIPTION

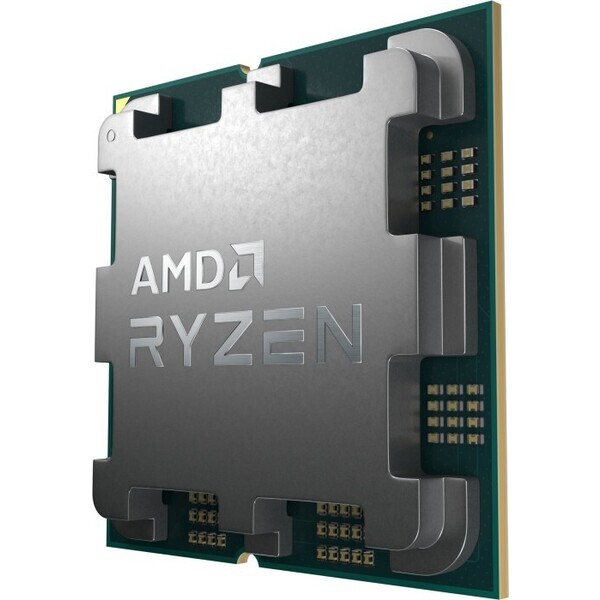

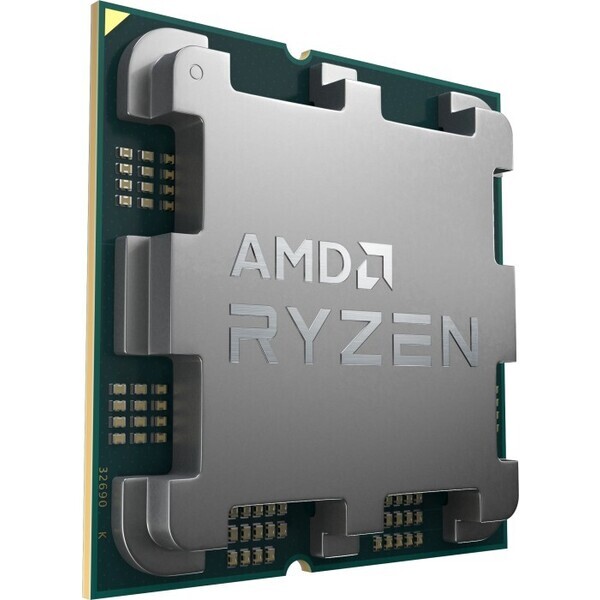

AMD Ryzen 7 7800X 3D, without cooler (AM5) (Ryzen7000) (AMDCPU)

FEATURES:

• Supported Technologies
• AMD EXPO™ Technology
• AMD Ryzen™ Technologies

SPECIFICATIONS:

• Platform Desktop
• Market Segment Enthusiast Desktop
• Product Family AMD Ryzen™ Processors
• Product Line AMD Ryzen™ 7 Processors
• AMD PRO Technologies No
• Consumer Use Yes
• Regional Availability Global
• Former Codename "Raphael AM5"
• Architecture "Zen 4"
• # of CPU Cores 8
• Multithreading (SMT) Yes
• # of Threads 16
• Max. Boost Clock Up to 5.0GHz
• Base Clock 4.2GHz
• L1 Cache 512KB
• L2 Cache 8MB
• L3 Cache 96MB
• Default TD 120W
• Processor Technology for CPU Cores TSMC 5nm FinFET
• Processor Technology for I/O Die TSMC 6nm FinFET
• CPU Compute Die (CCD) Size 71mm²
• I/O Die (IOD) Size 122mm²
• Package Die Count 2
• AMD EXPO™ Memory Overclocking Technology Yes
• Precision Boost Overdrive Yes
• Curve Optimizer Voltage Offsets Yes
• AMD Ryzen™ Master Support Yes
• CPU Socket AM5
• Supporting Chipsets X670E X670 B650E B650
• CPU Boost Technology
• Precision Boost 2
• Instruction Set x86-64
• Supported Extensions: AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
• Thermal Solution (PIB): Not included
• Max. Operating Temperature (Tjmax): 89°C
• Launch Date: 4/6/2023
• *OS Support:
  Windows 11 - 64-Bit Edition
  Windows 10 - 64-Bit Edition
  RHEL x86 64-Bit
  Ubuntu x86 64-Bit
  *Operating System (OS) support will vary by manufacturer.

Connectivity

• USB Type-C® Support: Yes
• Native USB 3.2 Gen 2 (10Gbps) Ports: 4
• Native USB 3.2 Gen 1 (5Gbps) Ports: 0
• Native USB 2.0 (480Mbps) Ports: 1
• Native SATA Ports: 0
• PCI Express® Version: PCIe® 5.0
• Native PCIe® Lanes (Total/Usable): 28/24

Additional Usable PCIe Lanes from Motherboard

• AMD X670E 12x Gen4
• AMD X670 12x Gen4
• AMD B650E 8x Gen4
• AMD B650 8x Gen4

NVMe Support

• Boot, RAID0, RAID1, RAID10
• System Memory Type: DDR5
• Memory Channels: 2
• Max. Memory: 128GB
• System Memory Subtype: UDIM
