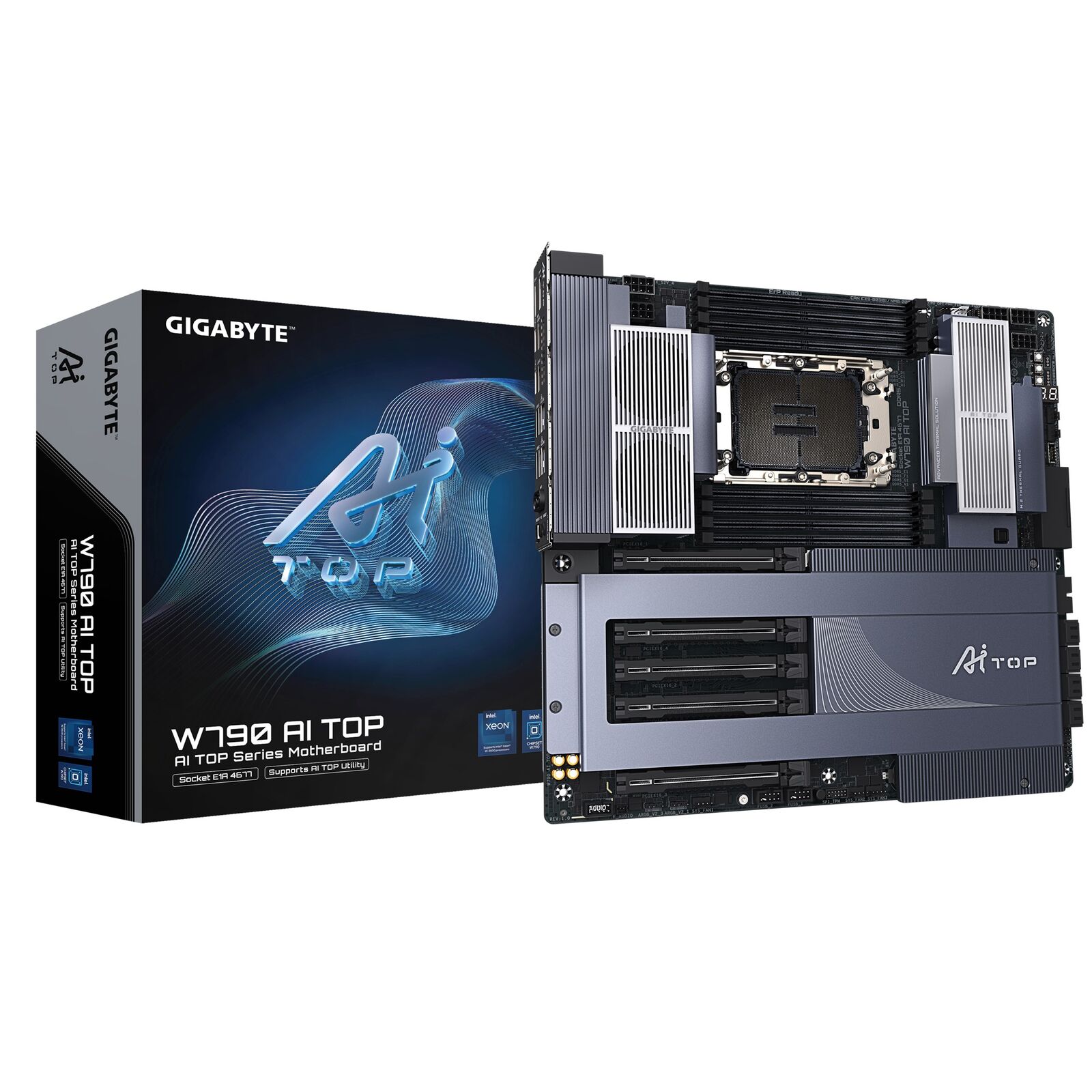

Gigabyte W790 AI TOP Motherboard, Intel W790, 5 x PCI Express x16 slots, 6x M.2, 8 x SATA, 8x USB 3.2, 1 x USB Type-C, Intel Wi-Fi 7

SKU: Leader-MBG-W790AITOP

Gigabyte W790 AI TOP Motherboard, Intel W790, 5 x PCI Express x16 slots, 6x M.2, 8 x SATA, 8x USB 3.2, 1 x USB Type-C, Intel Wi-Fi 7

SKU: Leader-MBG-W790AITOP

$2,152.87
  • Only 2 Left!

or 4 payments of $538.22 with Info

Gigabyte W790 AI TOP Motherboard, Intel® W790, 5 x PCI Express x16 slots, 6x M.2, 8 x SATA, 8x USB 3.2, 1 x USB Type-C, Intel® Wi-Fi 7

Quantity
-
+

Calculate shipping



Standard Shipping - $7.95
2-6 Business Days With Tracking, Maximum $7.95
Express Shipping - $9.95
Next Business Day Within Australia Post Express Post Network

DESCRIPTION

Gigabyte W790 AI TOP Motherboard, Intel® W790, 5 x PCI Express x16 slots, 6x M.2, 8 x SATA, 8x USB 3.2, 1 x USB Type-C, Intel® Wi-Fi 7

CPU
LGA4677 socket: Support for Intel® Xeon® W-3500/W-3400/W-2500/W-2400 Series Processors
L3 cache varies with CPU

Chipset
Intel® W790 Express Chipset

Memory
Support for 5600(O.C.) / 4800 MHz memory modules 8 x DDR5 DIMM sockets
Support for DDR5 ECC Registered memory modules and up to 2 TB of system memory
Support for Extreme Memory Profile (XMP) memory modules

LAN
Intel® X710-AT2 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module
Intel® Wi-Fi 7 BE200NGW

Expansion Slots
CPU:
- 5 x PCI Express x16 slots, supporting PCIe 5.0 and running at x16

Storage Interface
CPU:
- 4 x M.2 connectors (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU, M2B_CPU, M2C_CPU, M2D_CPU)
Chipset:
- 2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2E_SB, M2F_SB)
- 8 x SATA 6Gb/s connectors

USB
Chipset+Intel® Thunderbolt™ 4 Controller:
- 2 x USB4® USB Type-C® ports on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available through the internal USB headers
