SKU: Leader-UPPS-PSMBS2K

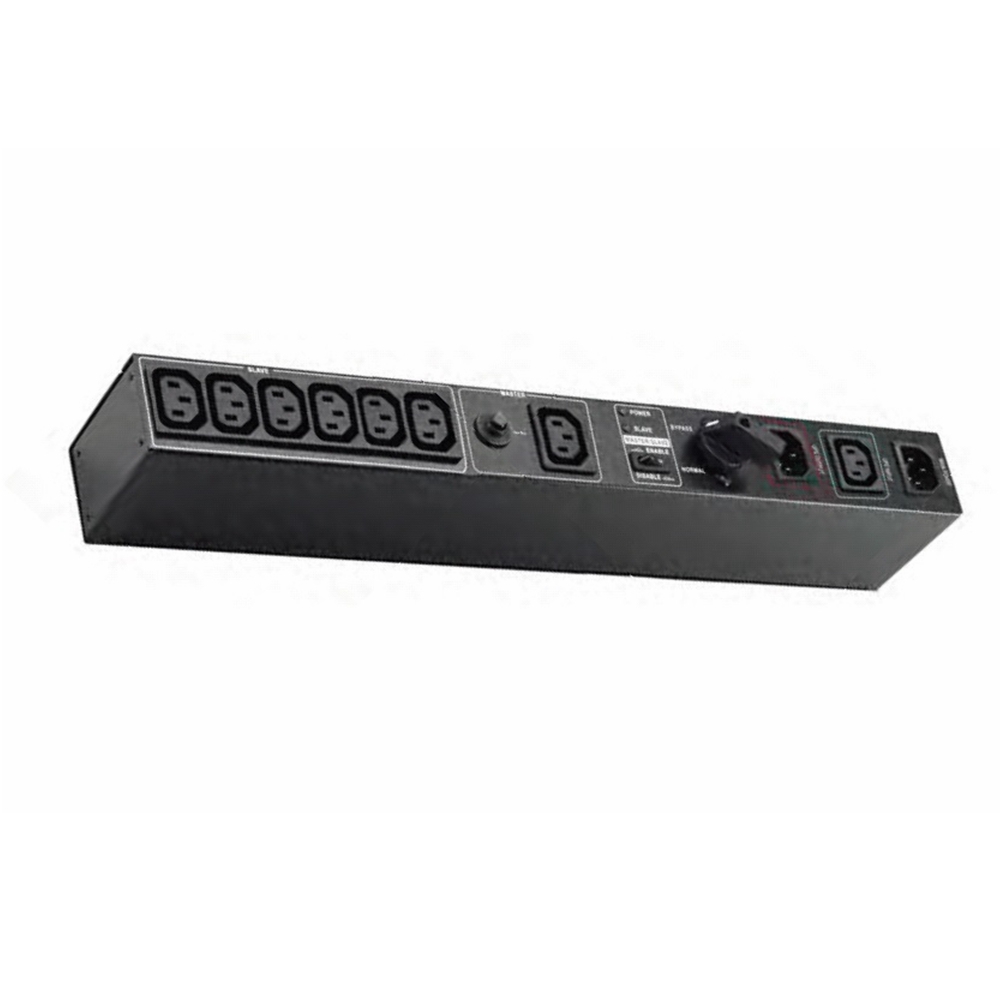

PowerShield Rack Mount Bypass Switch Plus Hot Swap PDU for 1 & 2kVA, 1U, 10Amp Input, ensures uninterrupted power during maintenance
SKU: Leader-UPPS-PSMBS2K
More From This Category
FEATURES
MBS + HOT SWAP PDU
FOR POWERSHIELD UPS 0-3KVA
• No downtime. Routine maintenance can be performed at any hour.
• A PDU (Power Distribution Unit) with 7 outlets for distribution to your load.
• Rackmount - MBS can be mounted both horizontally or vertically (ORU) into a rack.
• Wallmount option, vertically or horizontally.
• UPS Mountable. Designed to attach to PowerShield Centurion RT and Commander RT ranges.
• Suitable for all UPS topologies including offline, line interactive and true online double conversion.
MAINTENANCE BYPASS SWITCHES & PDU COMBINATIONS
COMBINATION MBS+PDU (2KVA, 3KVA) | MBS & OPTIONAL PDU (10KVA) | WALL MOUNT MBS RANGE (6-100KVA)
PowerShield offers a versatile range of MBS solutions (Maintenance Bypass Switch) and PDUs (Power Distribution Units) for all types of UPS applications.
A correctly designed MBS enables a technician to perform maintenance on a UPS at any time, without interruption to normal business operations with no need to shut down your critical electrical load. While in the “Bypass” position the UPS will still receive power from the mains (or alternative power source) so that the technician can perform maintenance procedures, without interruption to the load.
In the “Bypass and Isolate” position there is no voltage present at the input and output terminals of the UPS. Hence in this position, a trained technician can safely work on components within the UPS. Also, if need be the UPS can be safely removed and replaced, without danger to the technician and without interruption to the load.
RACK MOUNT MBS & OPTIONAL PDU
FOR POWERSHIELD UPS 6-10KVA
Three modes of operation: UPS, Bypass and Bypass & Isolate.
FEATURES
-
Mechanical safety microswitch with static bypass activation is standard. This eliminates the possibility of incorrect switching sequences and hence possible damage to the UPS and injury to personnel.
-
Optional PDU available to connect 10A/15A devices through IEC distribution outlet sockets.
12 Month
