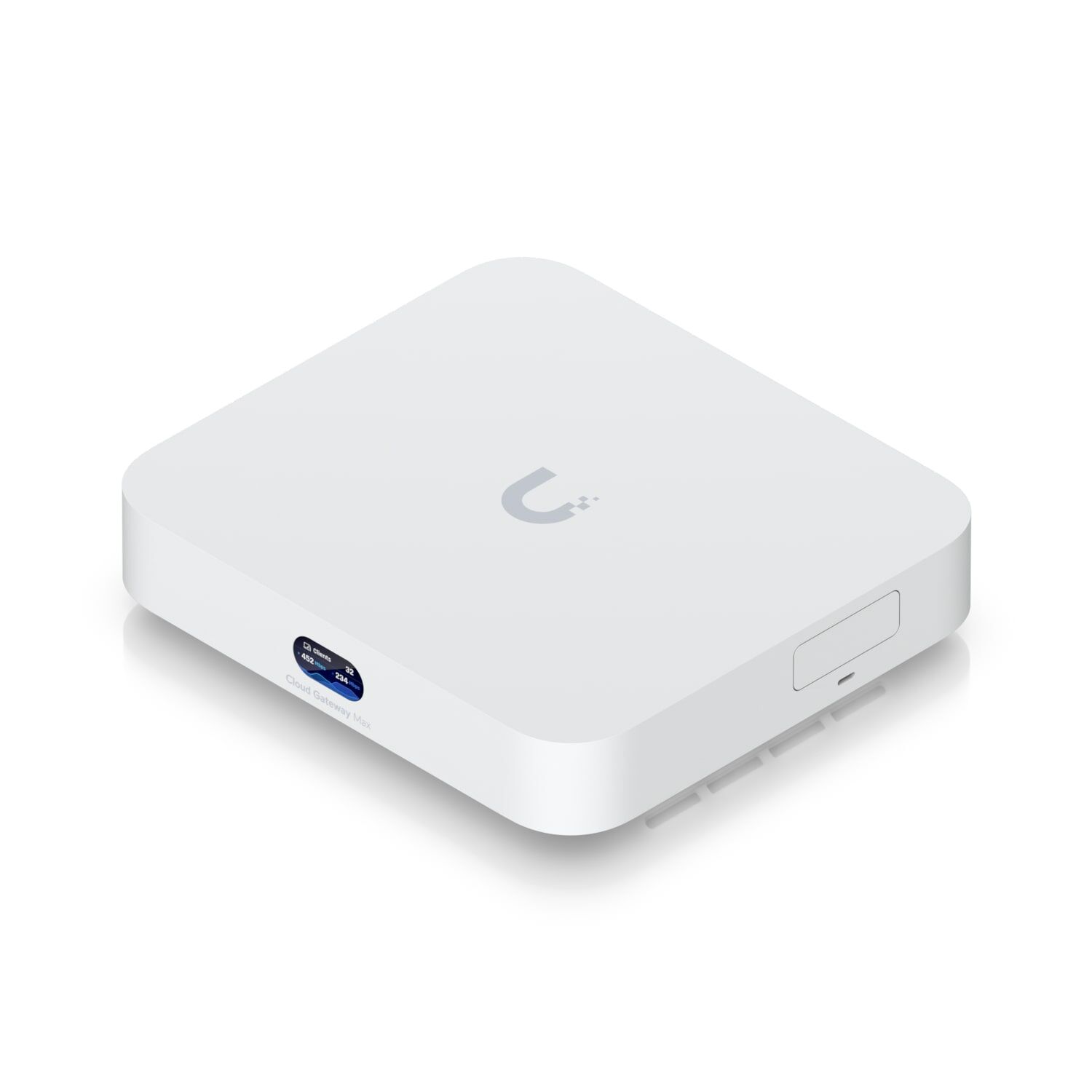

Cloud Gateway Max

Compact 2.5G Cloud Gateway with 30+ UniFi device / 300+ client support, 1.5 Gbps IPS routing, and selectable NVR storage.

• Includes full UniFi application suite for device management
• Manages 30+ UniFi devices and 300+ clients
• 1.5 Gbps routing with IDS/IPS
• Multi-WAN load balancing
• 512 GB NVMe SSD storage for NVR
• 0.96" LCM status display

USB-C powered (adapter included)

Compact and Powerful

The Cloud Gateway Max is a palm-sized powerhouse that integrates advanced networking and security features. Its compact design ensures it fits seamlessly into small office environments while delivering robust performance.



UniFi Site Manager Ready

Completely plug-and-play with no CloudKey required. Just add internet.



Designed for Multi-WAN

Natively load balance two WANs. Add a third with UniFi LTE Backup.



Engineered for Secure Networking

Protect your organisation with IPS, VPN, content filtering, and more.



High-Speed Connectivity

Featuring 2.5 GbE ports, including one WAN and four LAN (one remappable), the Cloud Gateway Max offers 1.5 Gbps IPS routing. This ensures smooth, high-speed data transmission for demanding small business networks.



Scalable for Growing Businesses

Manage up to 30 UniFi devices and over 300 connected clients through a single interface.



All the Power of UniFi

The complete UniFi experience in a strikingly compact form factor.


Technical Specs

Mechanical

Dimensions

141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2")

Weight

519 g (1.1 lb)

Enclosure material

Polycarbonate

Hardware

Processor

Quad-core ARM® Cortex®-A53 at 1.5 GHz

System memory

3 GB DDR4

On-board storage

512 GB NVMe SSD

Management interface

Ethernet, Bluetooth

Networking interface

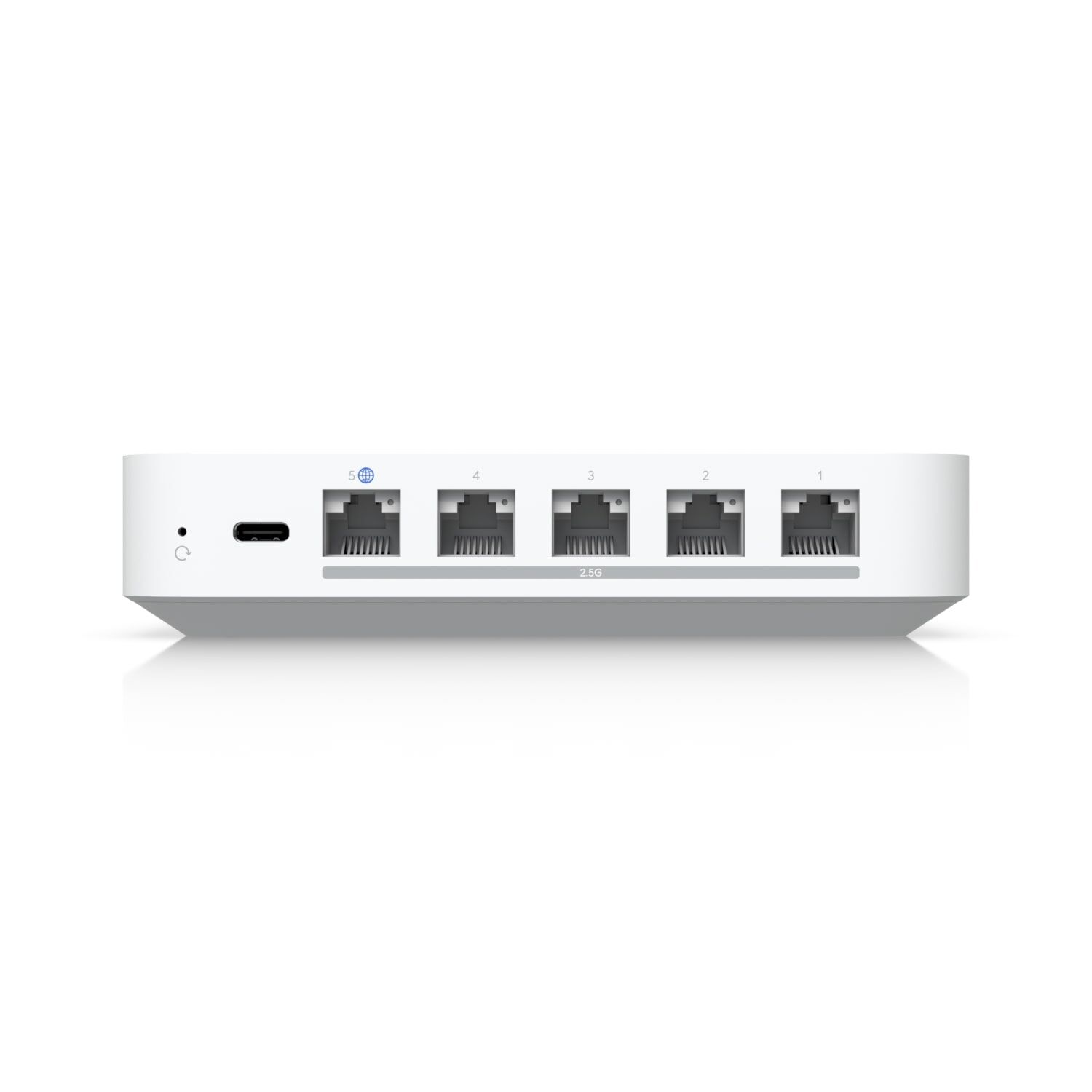

LAN: (4) 1/2.5 GbE RJ45 ports
WAN: (1) 1/2.5 GbE RJ45 port

IDS/IPS throughput

1.5 Gbps*

*Measured with iPerf3 on a DHCP network. Performance may be reduced with PPPoE depending on ISP implementation.

Power method

USB type C (5V DC/5A)

Supported voltage range

100-240V AC

Max. power consumption

16.1W

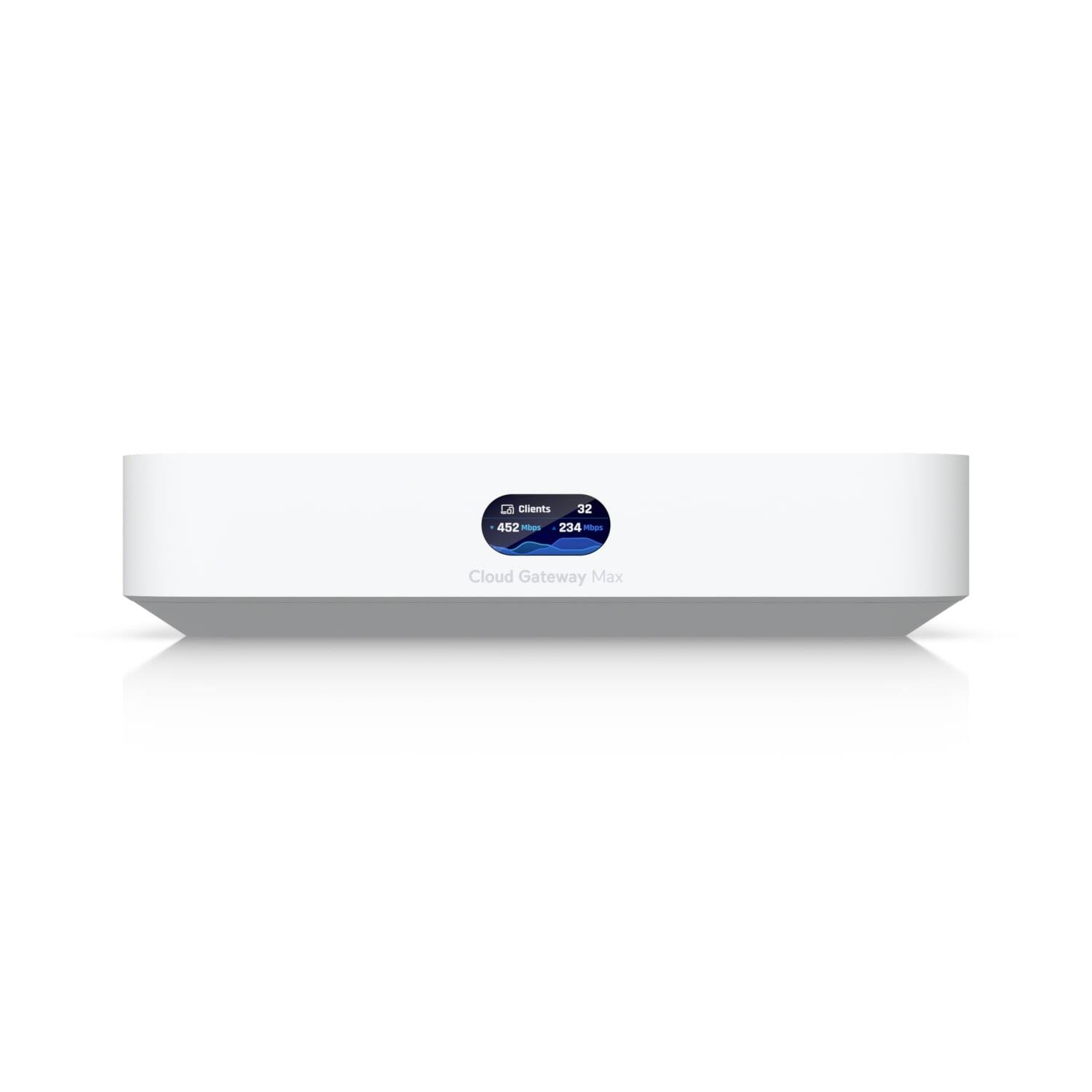

LCM display

0.96" status display

Button

Factory reset

Ambient operating temperature

-10 to 40° C (14 to 104° F)

Ambient operating humidity

5 to 95% noncondensing

Certifications

CE, FCC, IC

Gateway Features

Performance

Redundant WAN with failover and load balancing
WiFi QoS with UniFi APs
Application, domain, and country-based QoS
Application and device type identification
Additional internet failover with LTE Backup
Internet quality and outage reporting

Next-generation security

Application-aware firewall rules
Signature-based IPS/IDS threat detection
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall

Advanced networking

License-free SD-WAN
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport and Identity VPN
Policy-based WAN and VPN routing
DHCP relay
Customisable DHCP server
IGMP proxy
IPv6 ISP support

LEDs

Ethernet

Green: link/activity

Application Requirements

Mobile app

UniFi iOS™ and Android™: Version 10.17.2 and later
