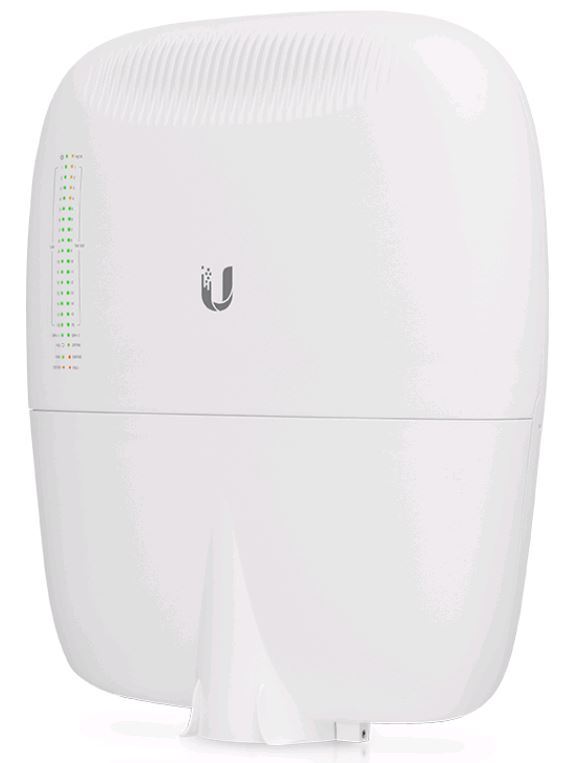

The EP-S16 features 16 RJ45 Ethernet ports and two SFP+ ports.

The Ubiquiti Edgepoint EP-S16 provides advanced features, including:
• MSTP/RSTP/STP
• VLAN, Private VLAN, Voice VLAN
• Link Aggregation
• DHCP Snooping, IGMP Snooping
• TACACS+, RADIUS, 802.1X, MAC Filtering, ACL
• DiffServ, CoS
• Static Routing, Policy-Based Routing

Ubiquiti Edgepoint EP-S16 Bottom Panel
• Power Options
• 54VDC, 6A Terminal Block
• Dual PoE Input
• 1x Console Port
• Data Ports
• 16x RJ45 Ports
• 2x SFP+ Ports

Sixteen RJ45 ports support PoE:
• PoE Input or Output
• 2x Ports with Two Options:54V, 1.5A Passive PoE Input or 54 or 24V, 1.4A Passive PoE Output*
• PoE Output
• 2x 54 or 24V, 1.4A Passive PoE Output Ports*
• 12x PoE+ or 24V, 0.7A Passive PoE Output Ports*

Cabling Protection
• FiberProtect Strain Relief for Fiber Optic Strands
• Cable Sleeve and Option for Conduit (Not Included)
• Cable Tie Slots (Cable Ties Not Included)

Back Panel
• Lanyard Loop for Ease of Installation
• Slot for PicoStationM2HP (Not Included) to Allow for Wireless

Management
• Pole-Mount Bracket (Wall-Mount Bracket Also Included)
• Ground Bonding Point
